Bringing the human sense of touch to industrial robotic applications. FG25 is an optical force sensor with dual FBG configuration enabling the next frontier in process control even for ultra harsh environments.
$990.00
Featuring 15.5mm active loading surface, GR25 tactile sensor provides off center load cancellation across the whole length of the gripping area.

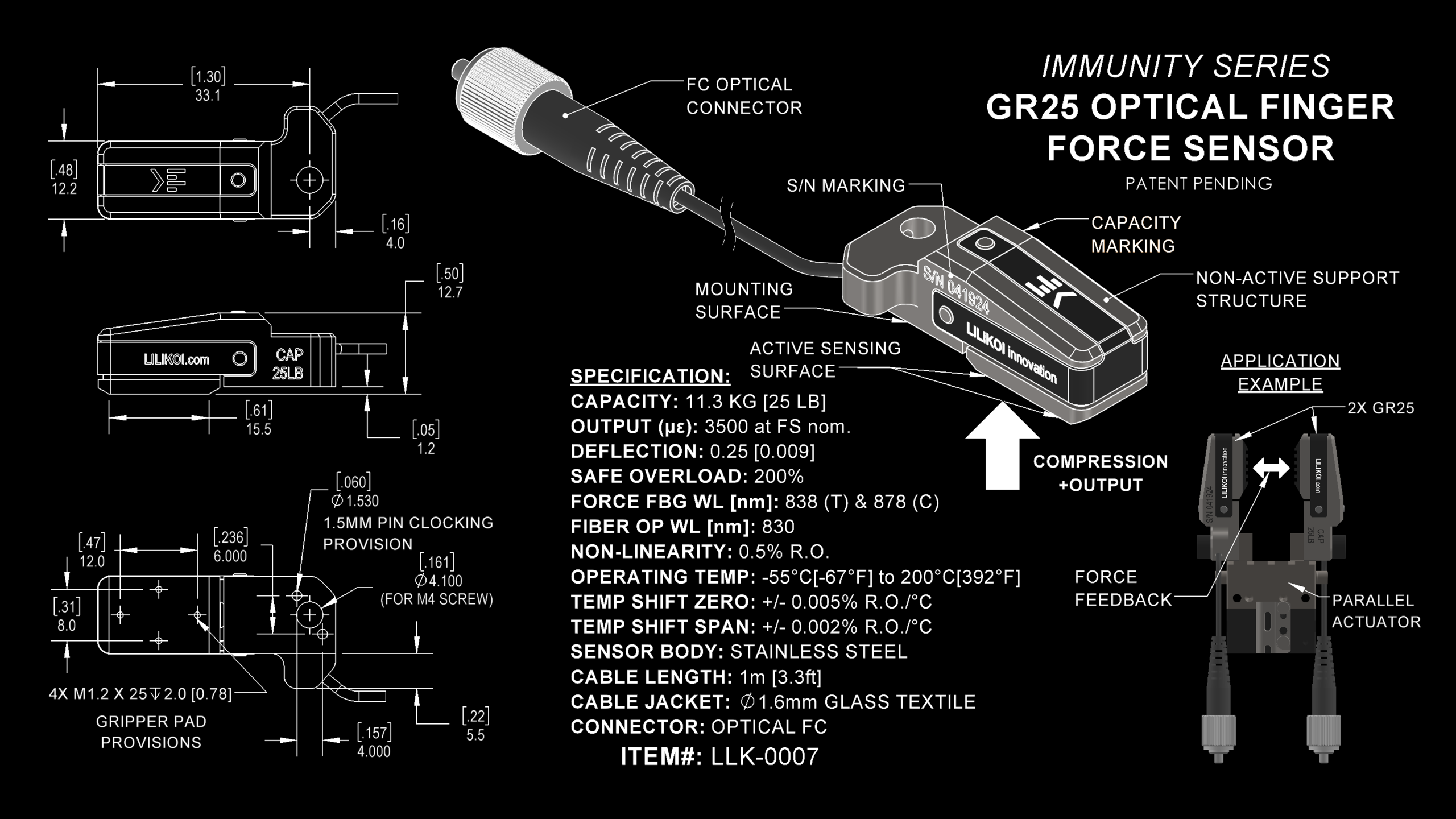

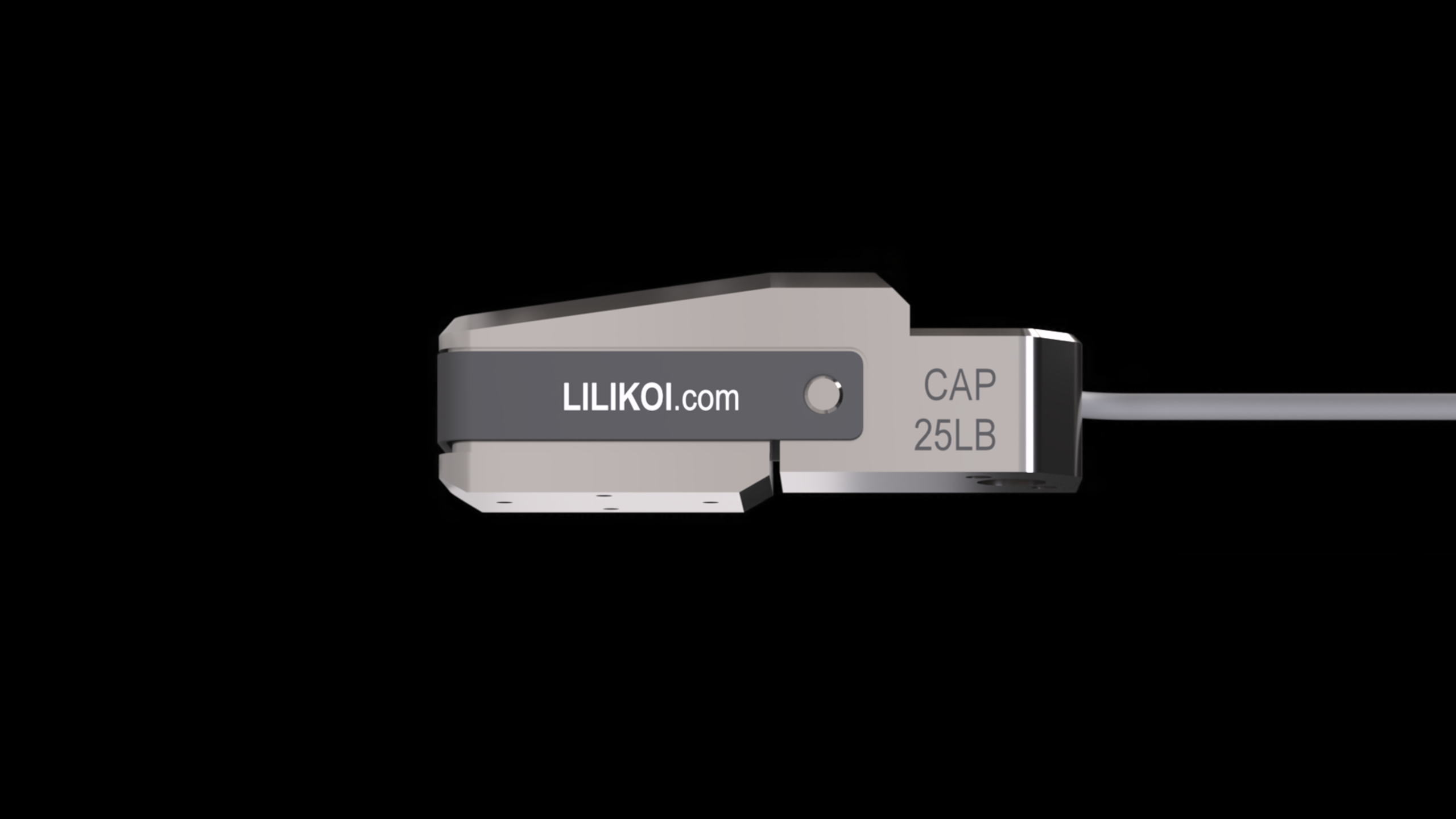

Rated to 11.3KG (25LB) capacity FGR25 finger sensor provides high accuracy measurements with non-linearity below 0.5% R.O.
Developed for harsh environments, providing complete immunity to EMI, RF, magnetic fields and high voltages.
Featuring dual FBG output technology, GR25 Finger sensor enables real time temperature compensation.
High temperature rating up to 200° C with temp shift zero and temp shift span performance below 0.005% R.O./°C.
There are no more limits to cable length vs. their effect on sensor performance. We can support long distances even above 1000m.

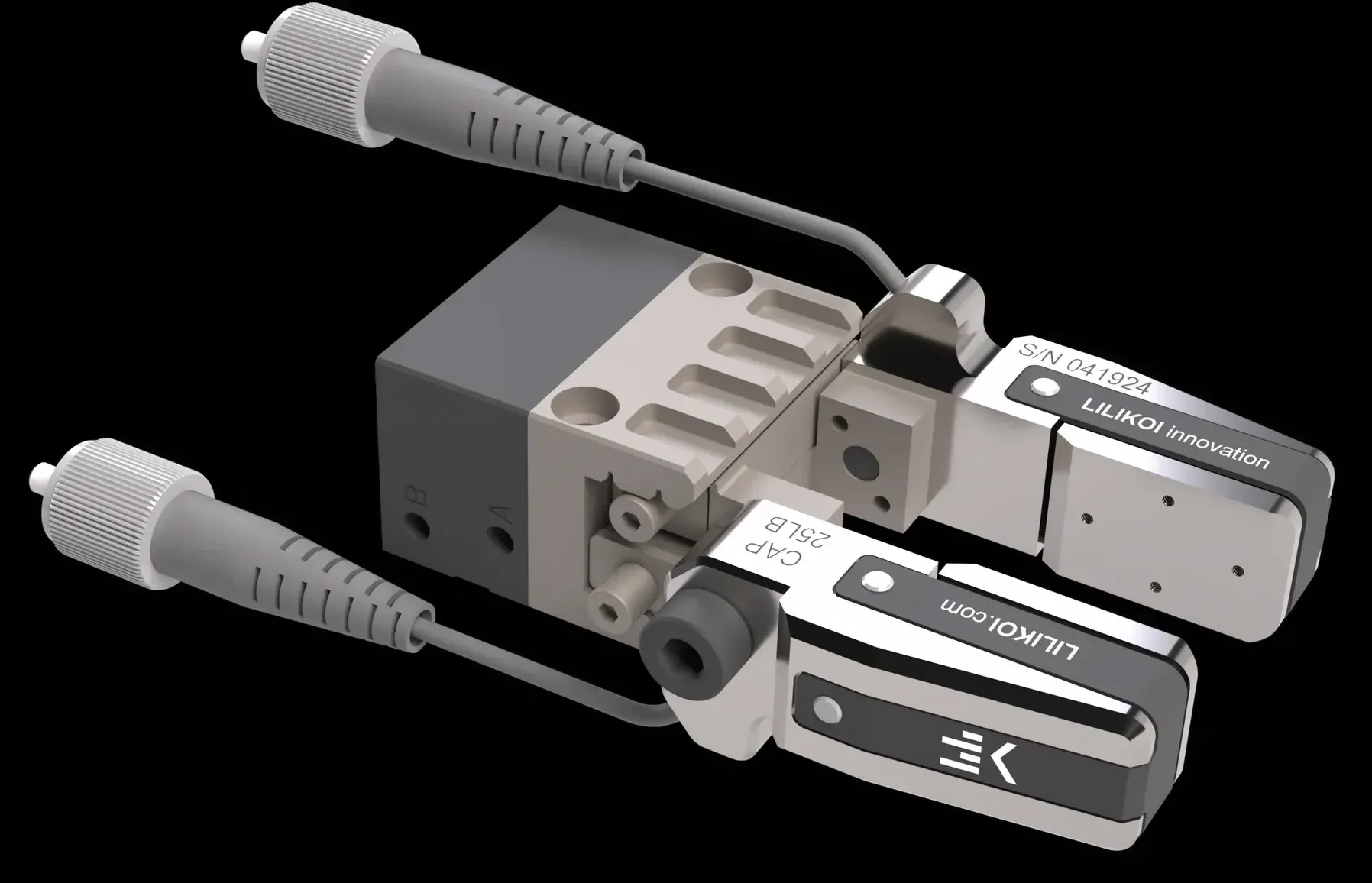

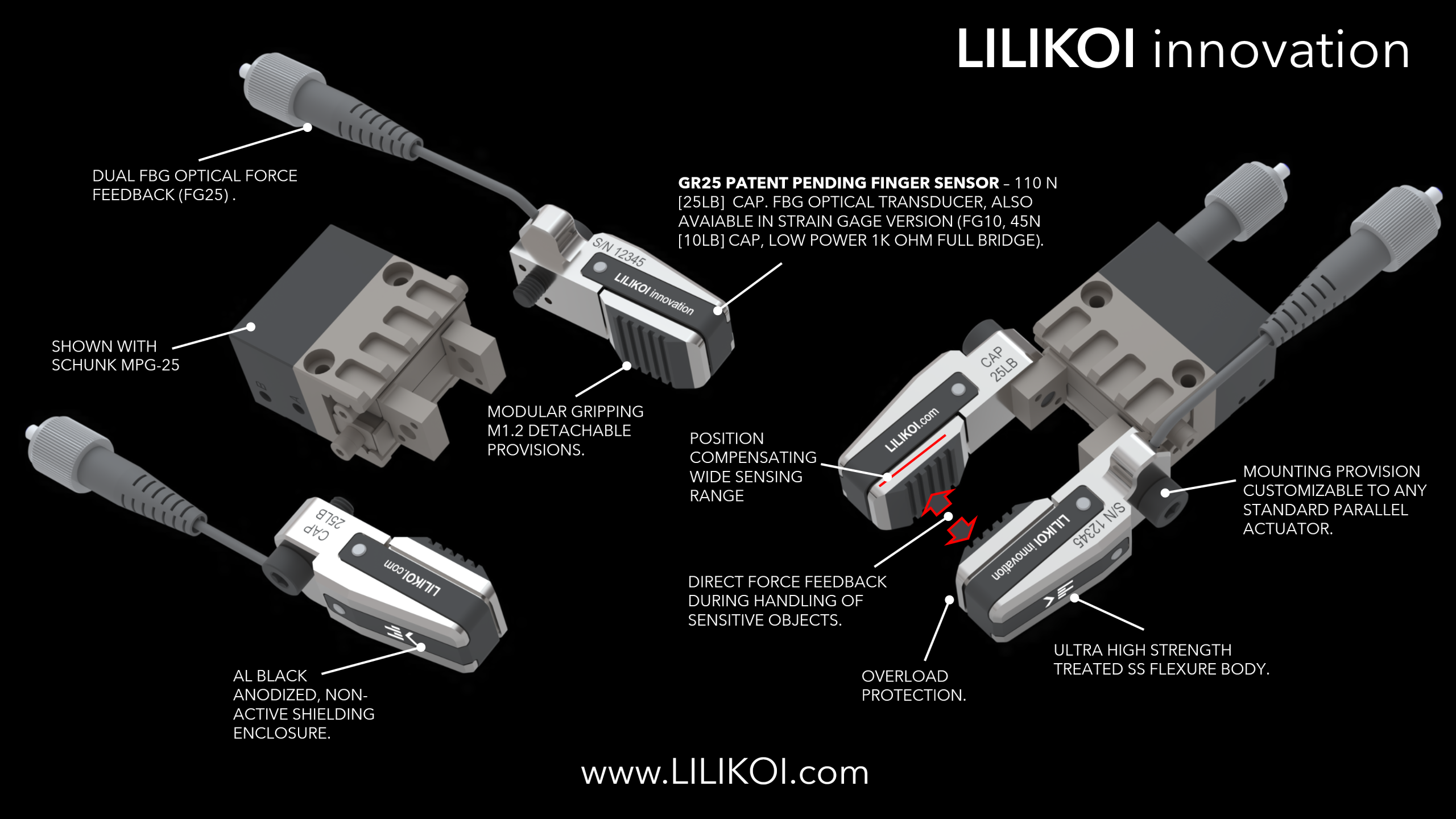

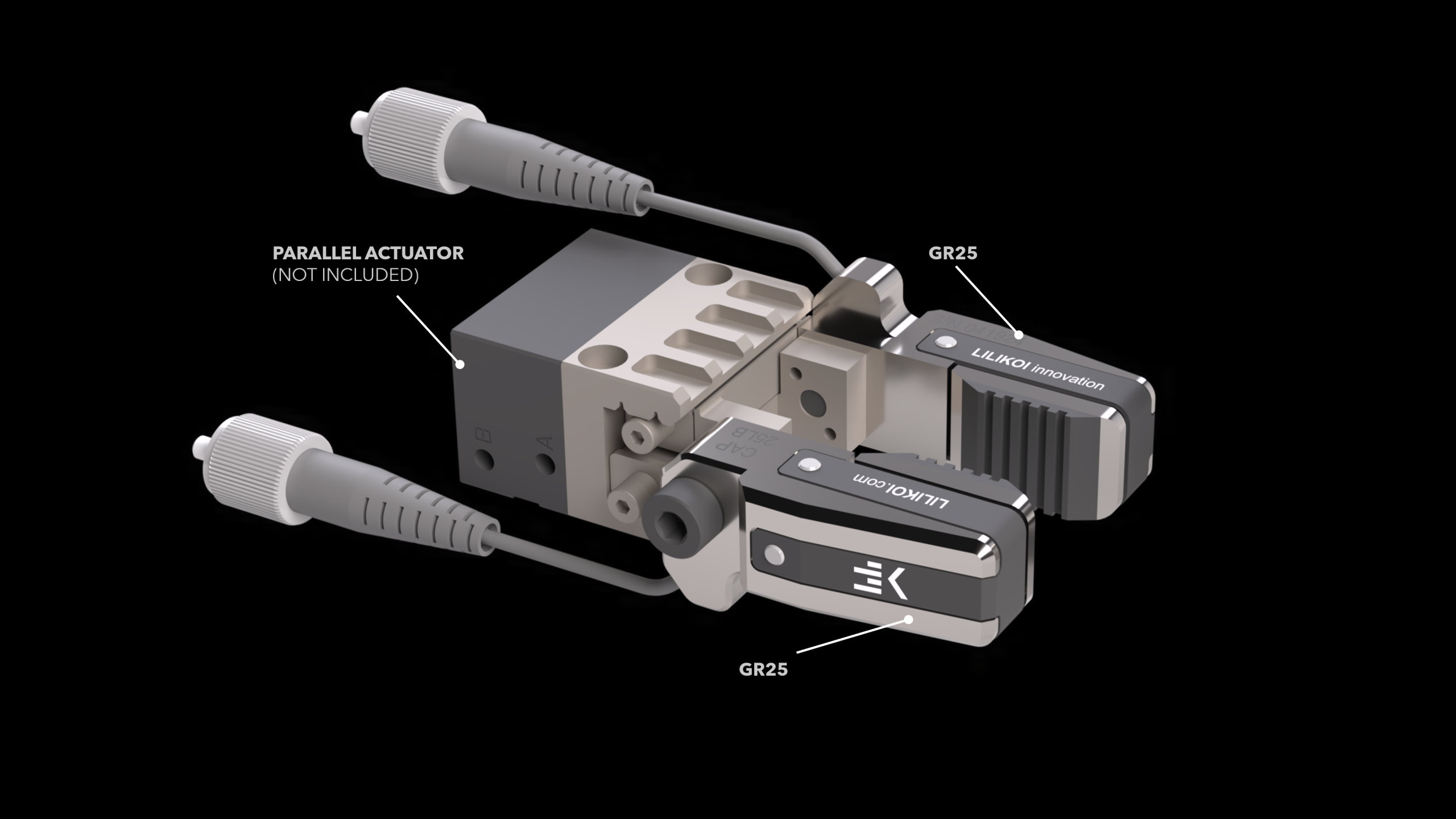

The GR25 Finger Force Sensor by LILIKOI innovation is a high-performance optical tactile force sensor designed for robotic grippers and parallel actuator systems. Built on dual Fiber Bragg Grating FBG technology, it provides precise force measurement along the entire finger surface, enabling robots to detect and control gripping forces with exceptional accuracy. This allows for intelligent interaction with delicate objects, improving handling stability and process reliability in advanced automation systems.
Engineered for extreme environments, the GR25 offers strong resistance to electromagnetic interference, high temperatures, submersion, and overload conditions. Its optical sensing architecture ensures stable and drift-free performance even in harsh industrial and mission critical applications. With high resolution force feedback and robust mechanical design, the GR25 enables next-generation robotic systems to achieve human like tactile perception and adaptive gripping control.
The GR25 transforms robotic fingers into intelligent sensing elements capable of delivering continuous force feedback during interaction. Its dual FBG configuration provides accurate strain measurement and real-time force detection, making it suitable for precision assembly, laboratory automation, semiconductor handling, and medical robotics. The sensor ensures consistent performance across the full gripping length, reducing errors caused by off center loading and improving control accuracy.
By integrating directly into robotic end effectors, the GR25 supports advanced automation tasks requiring delicate manipulation and high repeatability. It enhances machine intelligence by enabling force-aware control strategies, reducing product damage, and improving overall system efficiency in complex operational environments.
Enhance your robotic systems with GR25 finger force sensors from LILIKOI innovation for precise optical tactile feedback and control.
