Enabling calibration, visualization and data acquisition of FBG force, torque, pressure sensors and temperature probes with USB plug and play high precision miniature, affordable system solution.
$2,899.00

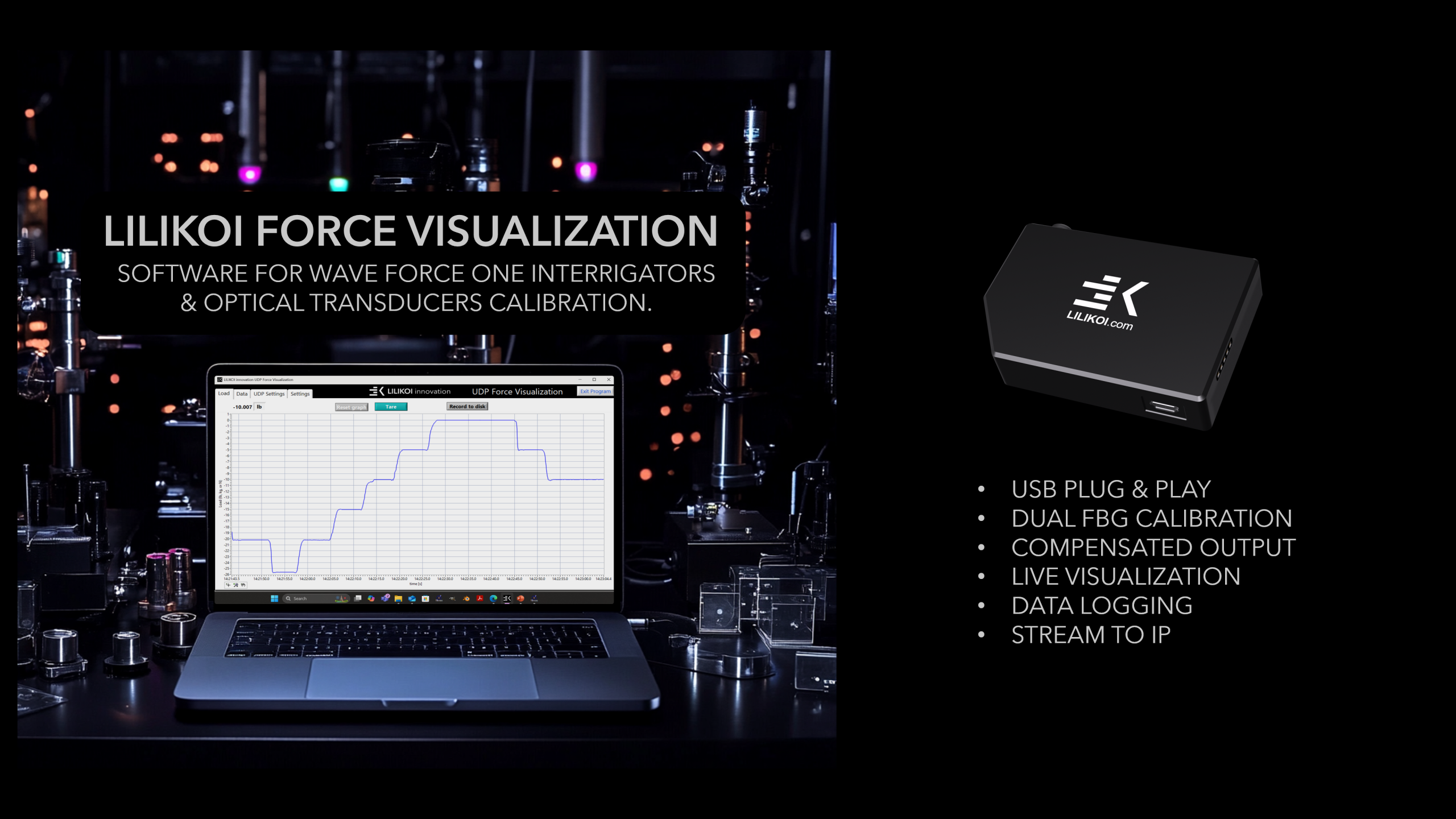

Easily connect to your windows laptop, or tablet using USB port and provided data acquisition LILIKOI Force Visualization Software (included).
Enter your Dual FBG Force Sensor Calibration Data to Data Log, Visualize or IP stream force output directly from your optical transducer.
Collect high accuracy data from up to 30 FBG sensing location simultaneously with 1 µε resolution and up to 200Hz sampling rate.
For embedded applications, utilize U-ART (RS-232) output capabilities, along with panel mounting provisions for system integration.

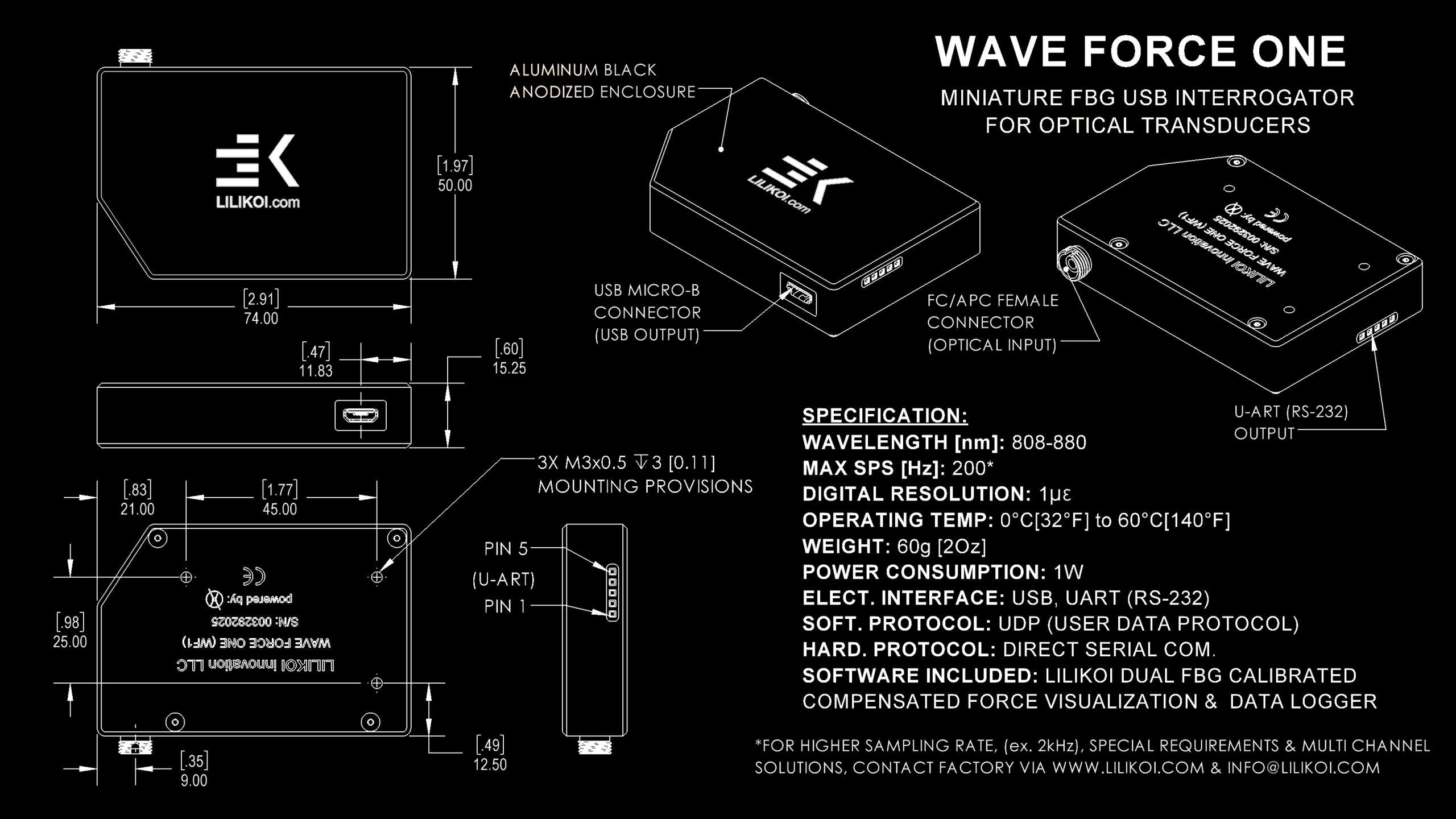

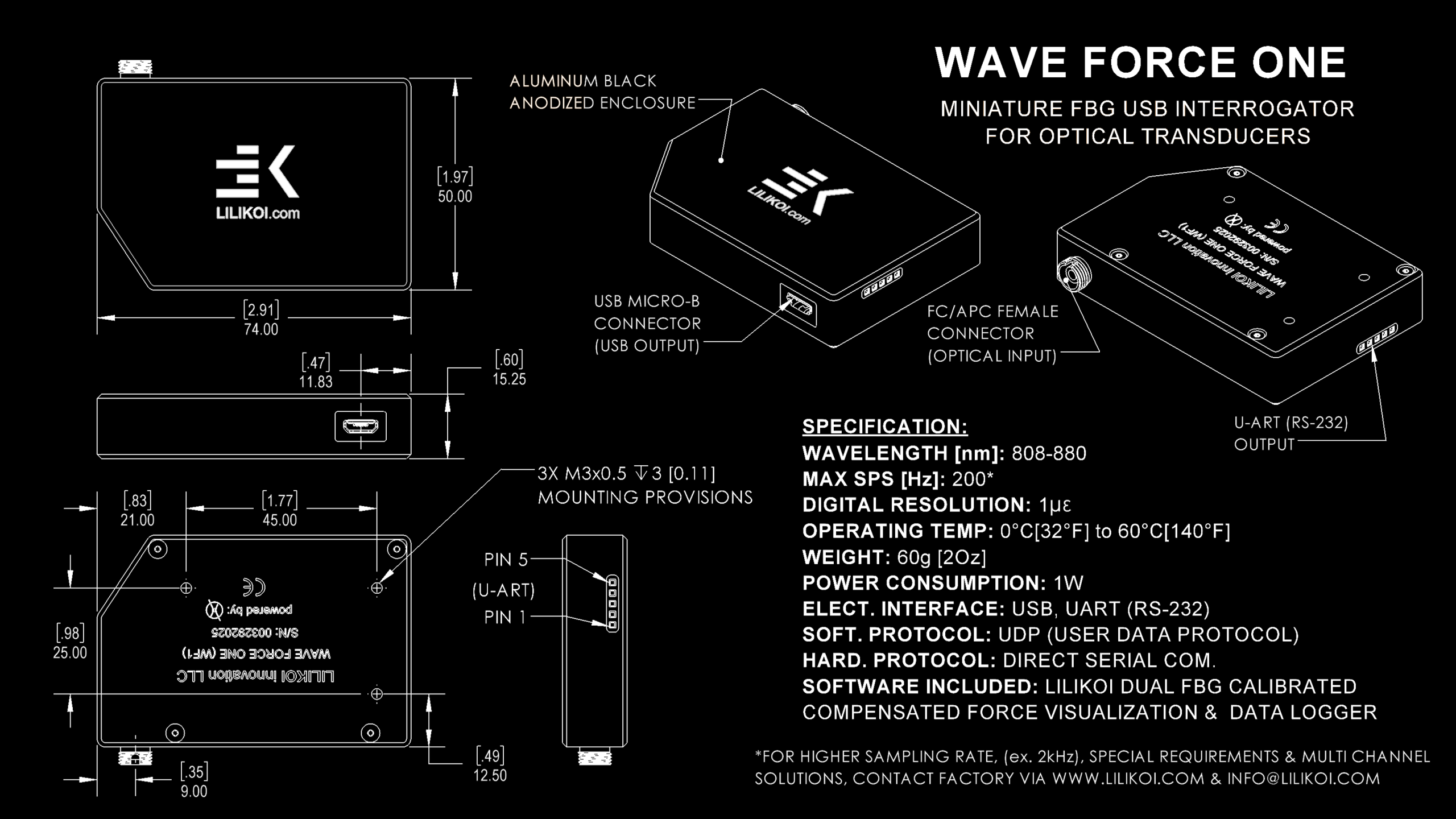

Powerful performance in a pocket size envelope 74mm x 50mm x 15mm and robust black anodized aerospace grade aluminum enclosure.
Ultimate thermal and polarization stability for high accuracy force, torque, pressure or temperature measurement performance.

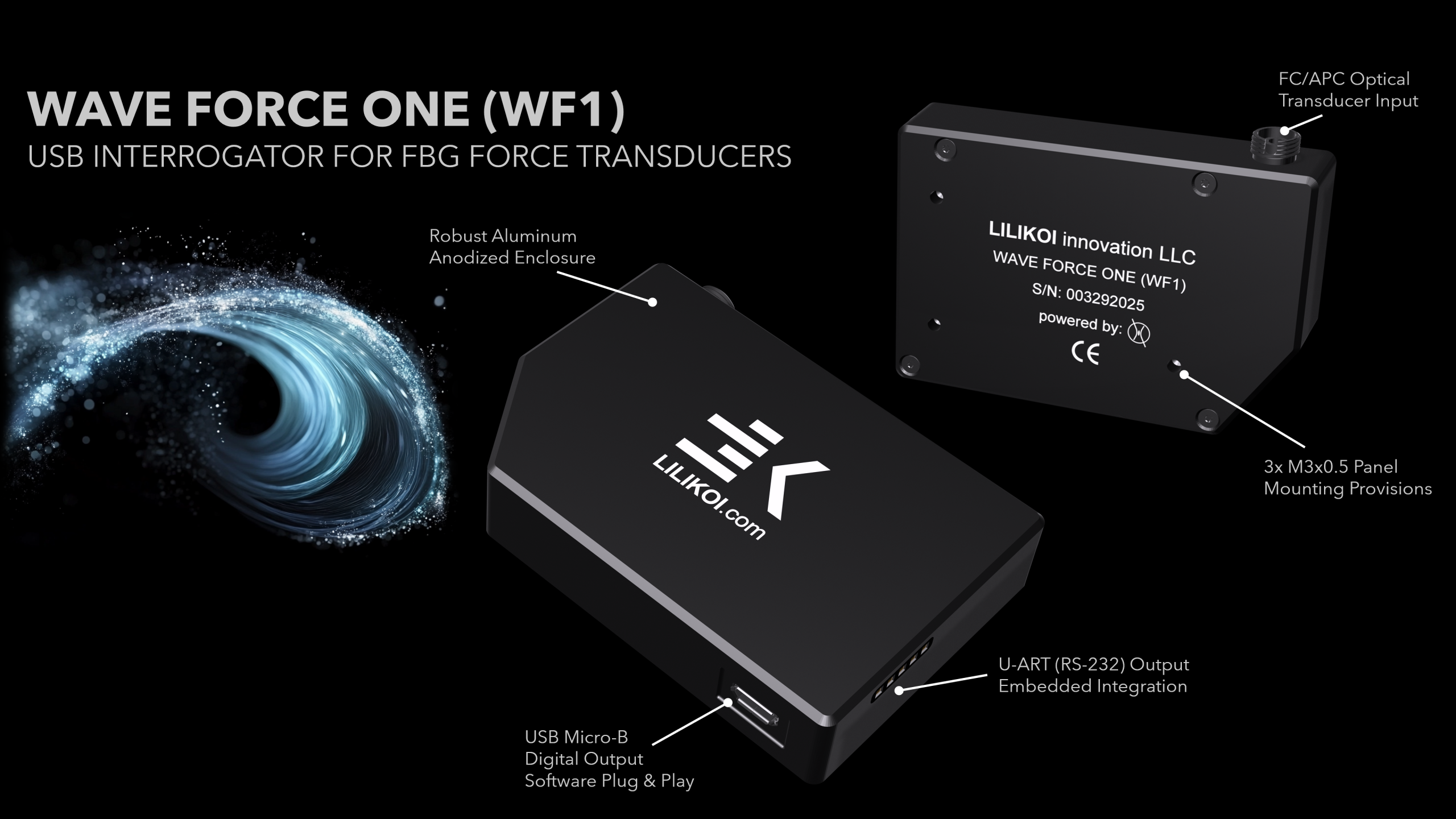

The FBG Interrogator for Optical Transducers by LILIKOI innovation is a compact, high-performance data acquisition system designed to read and process signals from Fiber Bragg Grating based sensors. It enables accurate calibration, visualization, and real-time measurement of force, torque, pressure, and temperature data from optical transducers used in advanced engineering systems. With USB plug-and-play connectivity, it provides a simple and efficient interface for both laboratory and industrial applications.
This interrogator system is designed to deliver high-resolution optical signal processing with stable performance and reliable data output. It supports multiple sensing channels and allows engineers to capture precise wavelength shifts from FBG sensors, converting them into meaningful engineering data. This makes it an essential tool for sensor development, system integration, and high-accuracy testing in aerospace, robotics, medical devices, and industrial automation.
The FBG interrogator acts as the core interface between optical sensors and digital measurement systems. It detects wavelength changes in Fiber Bragg Grating sensors and translates them into force, strain, pressure, or temperature readings. This enables precise monitoring of mechanical and environmental conditions in real time, ensuring accurate system feedback and control.
Designed for flexibility and integration, the system supports both laboratory testing and embedded applications. It is widely used in robotics, aerospace testing, structural monitoring, and advanced industrial research where high-precision optical sensing is required. Its stable signal processing ensures consistent performance even in demanding environments.
Enhance your measurement systems with LILIKOI innovation FBG interrogators for accurate calibration and real-time sensor data acquisition.
